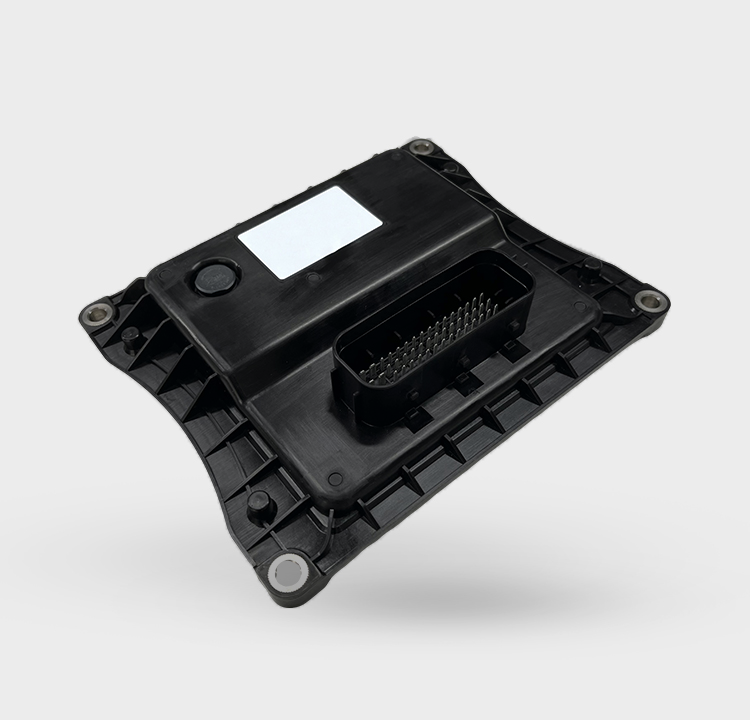

KESENS cold start thermal control unit CCU is suitable for commercial trucks and light diesel vehicles, and can meet the adaptability calibration of Euro VII emission regulations. Cold Start Thermal Control Unit (CSTU) is an active thermal management technology that can quickly heat and maintain the temperature of the emission control system. As a CSTU system control unit, CCU actively heats the aftertreatment system of diesel engines, thereby significantly reducing the emissions of nitrogen
62 pin connector
3 Peak-hold drive output, 4 low side drive output
4 frequency signal input，7 analog signal input
2 CAN, 1 Lin
Protection grade: IP6K9K
Length X width X height：201X161X40.5mm
Operating voltage：9~32V
Operating temperature：-40℃~105℃
Electromagnetic compatibility specifications in accordance with ISO and CISPR regulations
- Multiple installation solution
- System solutions to meet Euro VII emission regulations
- Integrated hydrocarbon injection function for commercial vehicles
- Customized system solution
- Professional engineering service capability
- Modular development to ensure delivery quality and efficiency
Product Features
- 32 bits high performance MCU
- Developing BSW based on AUTOSAR 4.0 standard
- Support wide oxygen sensor signal acquisition
- Support PWM input signal acquisition
- Support Peak-hold drive control, and current waveform can be calibrated as required
- Support Internal signal monitoring of the controller, such as monitoring power supply voltage, total current consumed by the system, etc
- Support UDS protocol and J1939 protocol
- The system has an OS that can provide 1ms, 10ms, 50ms, 100ms, and 1000ms scheduling tasks
- The system has an OS that can provide 1ms, 10ms, 50ms, 100ms, and 1000ms scheduling tasks
- Meet Euro VII emission regulation
-
