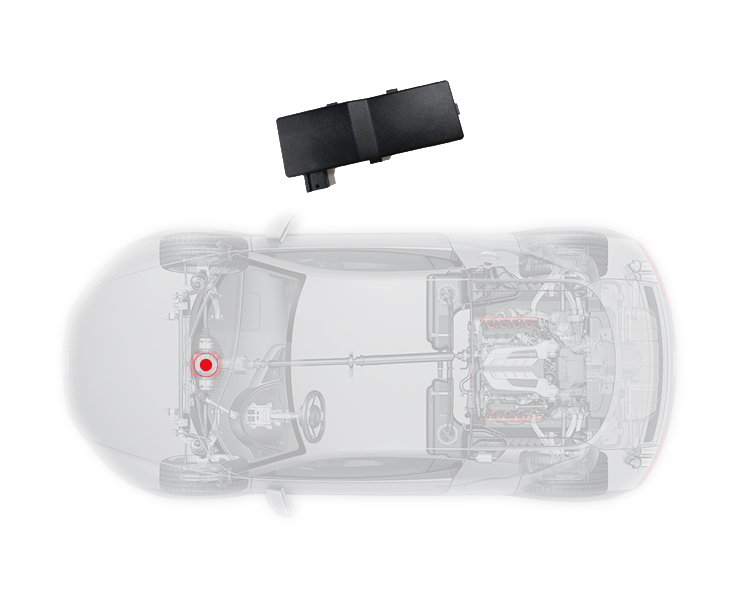

RFM(Remote Functional Module) is mainly to receive the RF signal from UID(User Identification Device) and/or TPS(Tired Pressure Sensor), and then send the processed data to BDC(Body Domain Controller Unit) for vehicle related operation(Such as Lock, Unlock, Trunk, Panic, Sensor information on cluster display).
Automotive Qualified Chip Solution
Support AES128 Algorithm
CAN or LIN Communication
Support RKE/PKE/TPM receiving Function
Support Two Frequency Receiving Function
Meet Different Country Regulation
Small Size & Convenience For Installation
|
parameter |
|
| Operated Temp | -40~+85℃ |
|
Storage Temp |
-40~+85℃ |
| Operated Voltage | 9~16V |
| Quiescent Current | <=1.5mA |
| Communication Method | LIN or CAN |
| RF Frequency | 433.92MHz or 315MHz |
| RF Distance | >20m |

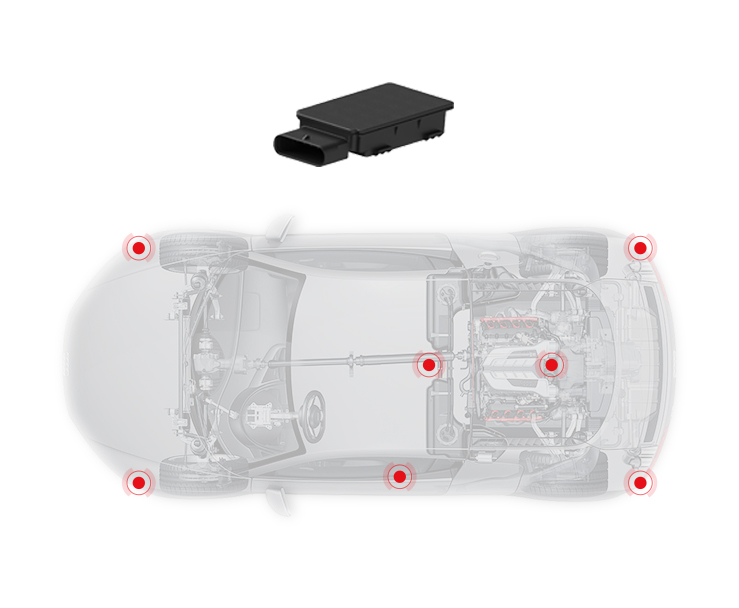

DCM(Digital Connectivity Module) is mainly to communicate with the handheld device(such smart phone, wearable devices, Key fob, etc.), and send the data to specified ECU or system via bus line.
Automotive Qualified Chip Solution
UWB and/or BLE and/or NFC Combination
Compatible With CAN/CANFD Comm
Support DSK Positioning Function
Support SE function
Meet Different International Standard
Small Size & Convenience For Installation
|
parameter |
|
| Operated Temp | -40~+85℃ |
|
Storage Temp |
-40~+85℃ |
| Operated Voltage | 9~16V |
| Quiescent Current | <=500uA |
| Communication Method | CAN or CANFD |
| NFC Frequency | 13.56MHz |
| NFC Identification Distance | >3cm |
| UWB Frequency | 6~8GHz |
| EIRP | <-41.3dBm/MHz |
| BLE Frequency | 2.4GHz |
Note : Different System Architecture, Different Modules Position

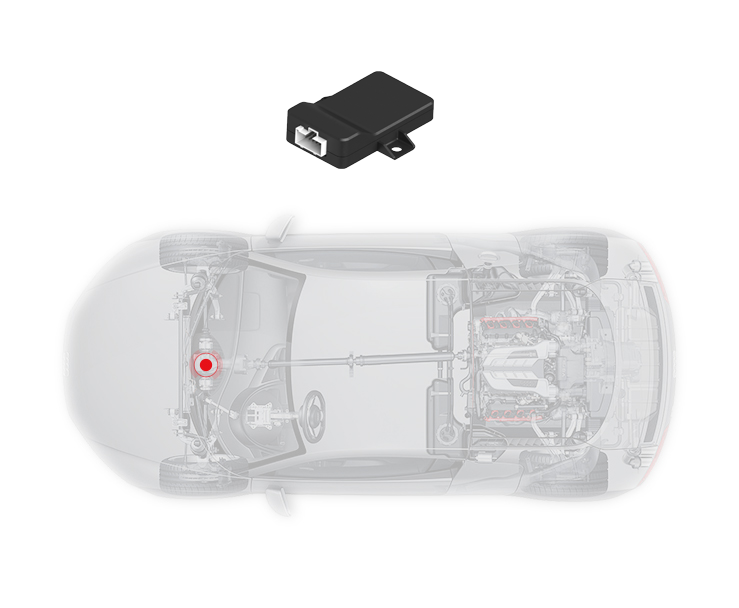

DSM(Digital Security Integration Module) is mainly to receive the related data for positioning, and send the calculated result to BDC(Body Domain Controller Unit) via bus line for vehicle related operation.
Automotive Qualified Chip Solution
UWB and/or BLE
Compatible With CAN/CANFD Comm
Support Handfree Digital Security Access
Support UDS, Boot, etc
With High Accuracy Positioning Algorithm
Support SE Function
Meet CCC, ICCE and ICCOA related Standard
Small Size & Convenience For Installation
|
parameter |
|
| Operated Temp | -40~+85℃ |
|
Storage Temp |
-40~+85℃ |
| Operated Voltage | 9~16V |
| Quiescent Current | <=1mA |
| Communication Method | CAN or CANFD |
| UWB Frequency | 6~8GHz |
| EIRP | <-41.3dBm/MHz |
| BLE Frequency | 2.4GHz |
-
