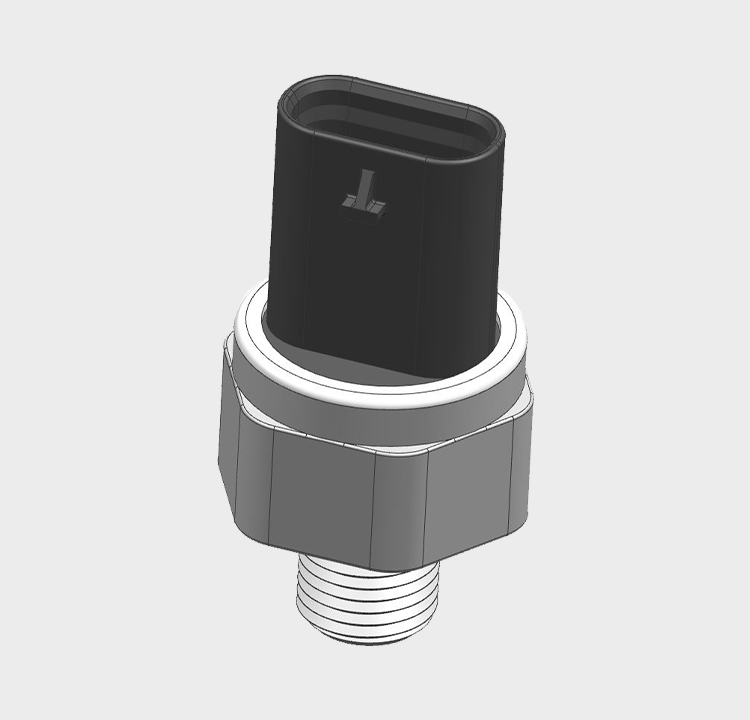

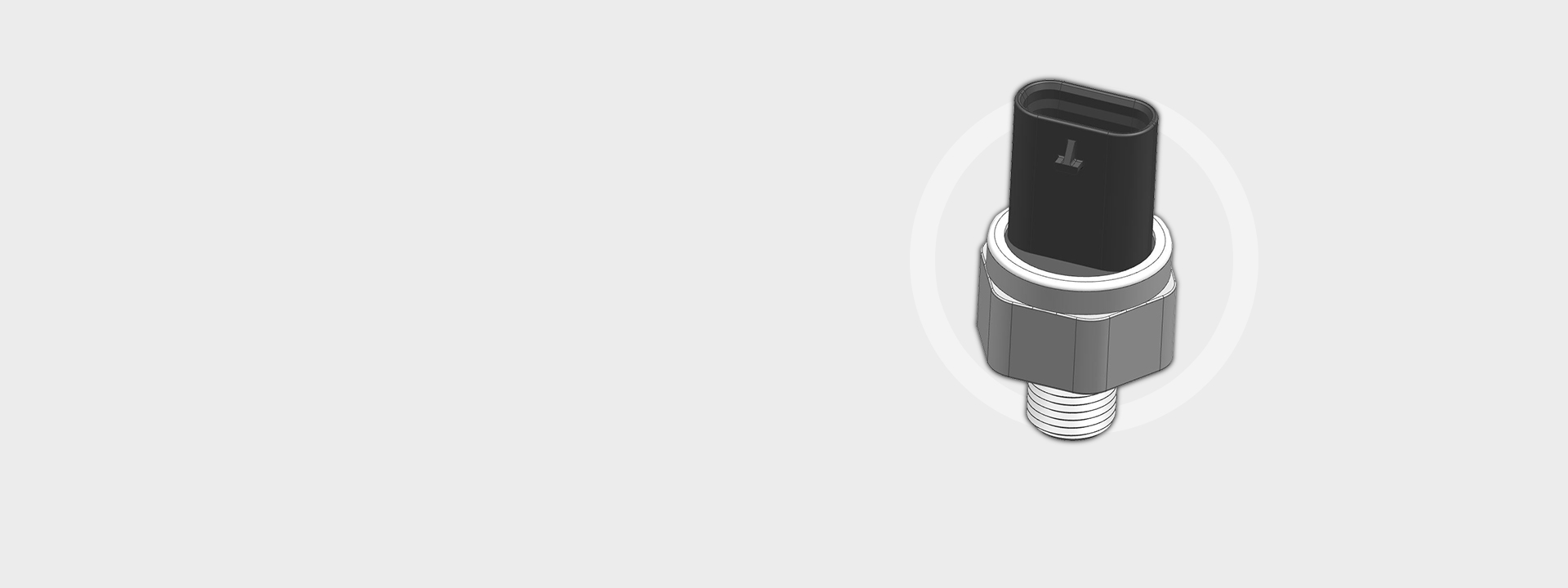

OPS is an important device to detect the oil pressure of the vehicle engine.
The OPS sensor provides analog signal or digital signal
With ceramic capacity technology, with both high accuracy and long-term stability. Ceramic has excellent compatibility with almost all automotive pressure media
Pressure can be customized in the range of 0~8MPa
Output with 0.5V~4.5V voltage single, with diagnosis function
Protection degree with IP69
Connector and pressure port can be customized
The oil pressure sensor detects the pressure of the main oil passage of the engine oil and transmits the signal to the ECU to help control the normal operation of the engine.
When the oil pressure is lower than the expected value, the engine fault lamp and oil lamp on the instrument are always on, giving an alarm signal. The ECU will enable the protection function of reducing the engine speed and power to regulate the engine speed and power.
According to the change of the medium pressure in the induction pipe, the oil pressure sensor will lead to the deformation of the ceramic strain film and change the capacitance value, which will be amplified by the conditioning circuit and converted into a voltage signal.
Customized to customer choice of connection system.
Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.
-
