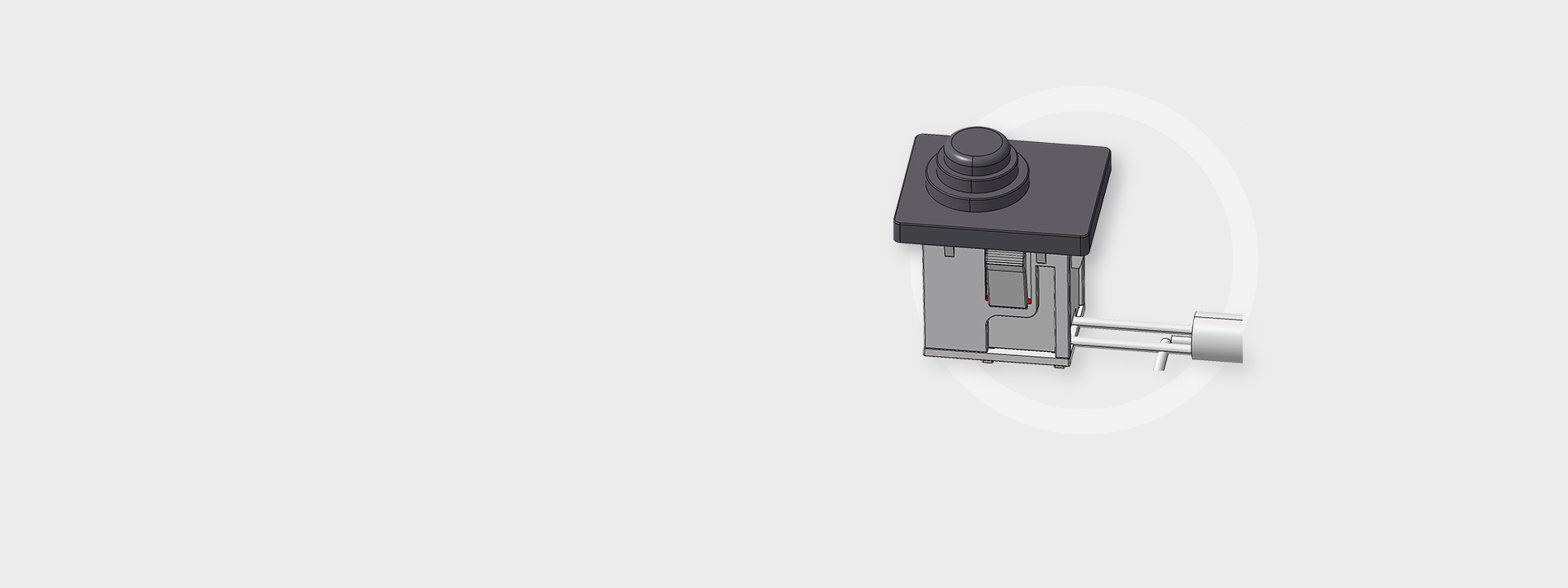

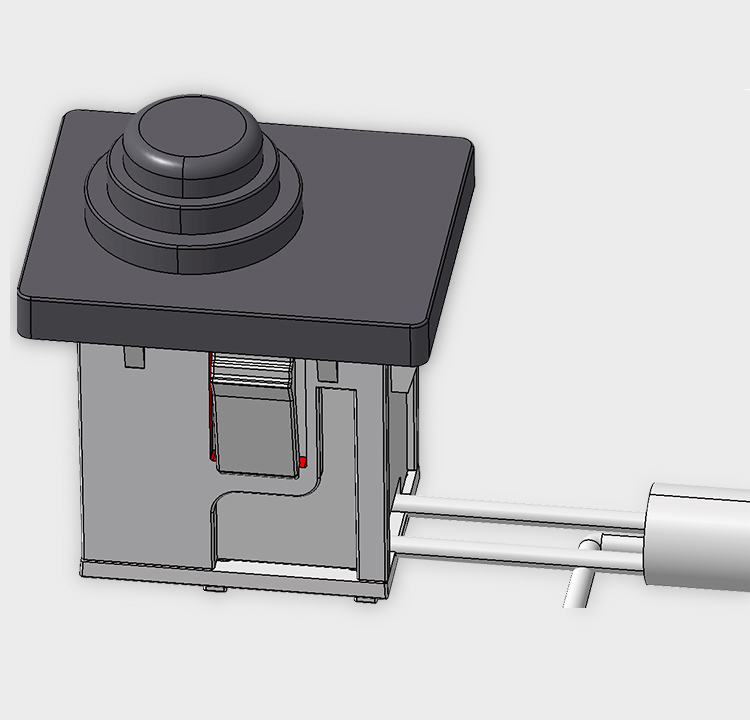

The Seat Occupancy sensor is a magnetically operated push button sensor with a simple push-fit clip mounting configuration, allowing the passenger safety system to determine the presence of an object in a seat, including the detection of persons.
Magnetically operated position sensor
Simple flush and recessed mounting options available
Normally open contact
Normally open contact
Choice of cable length and clips
Choice of connector and terminals
Choice of circuitry for output voltages
Robust construction makes this sensor well suited to harsh environments
No standby power required
Integral neoprene boot provides protection from severe environments
Hermetically sealed, magnetically operated contacts give excellent life and reliability
Can be connected directly to sounder or LED indicator
Can be connected directly to sounder or LED indicator
Position and limit sensing
The sensor is in a normally open position. When the plunger is depressed the magnetic circuit will be complete, activating the Reed Switch to close its contacts sending a voltage output to the customer electrical interface.
Customized to customer choice of connection system.
Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.
Breakdown
Min.
250 Vdc
Carry
Max
1.0Adc / 0.35Aac RMS
Insulation
Max.
1012?
Storage
Celsius
-65° to 125°
-
