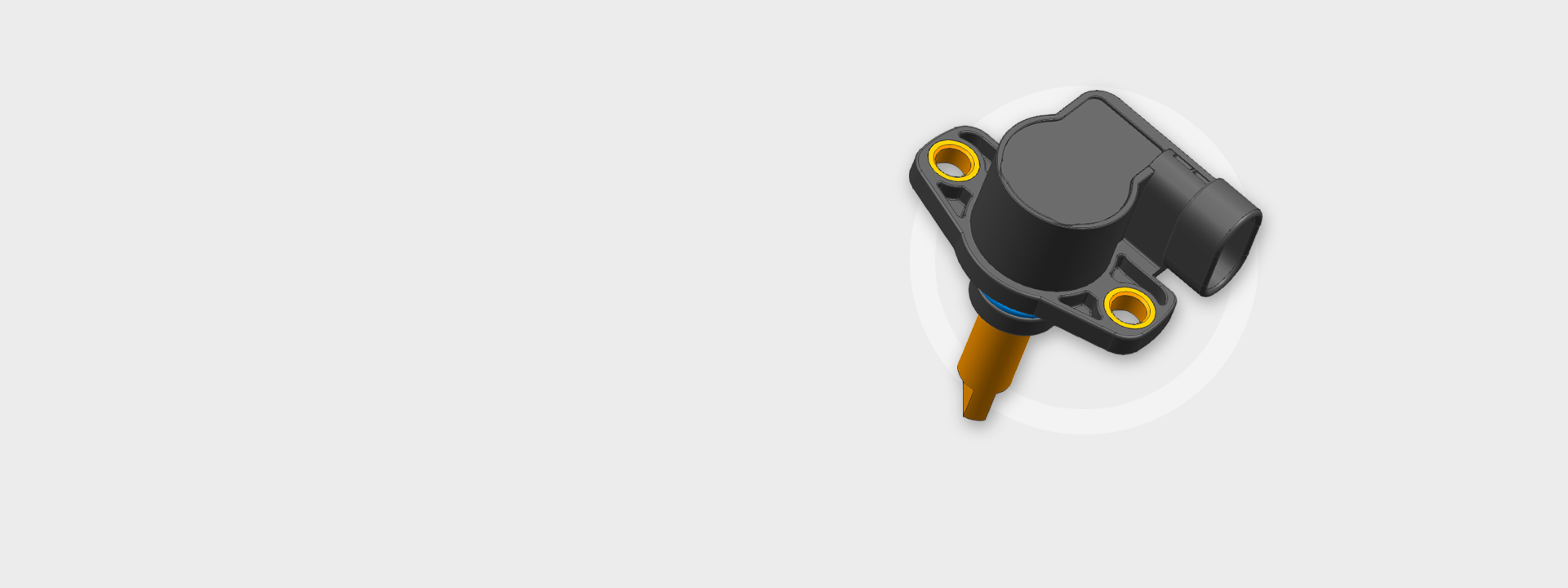

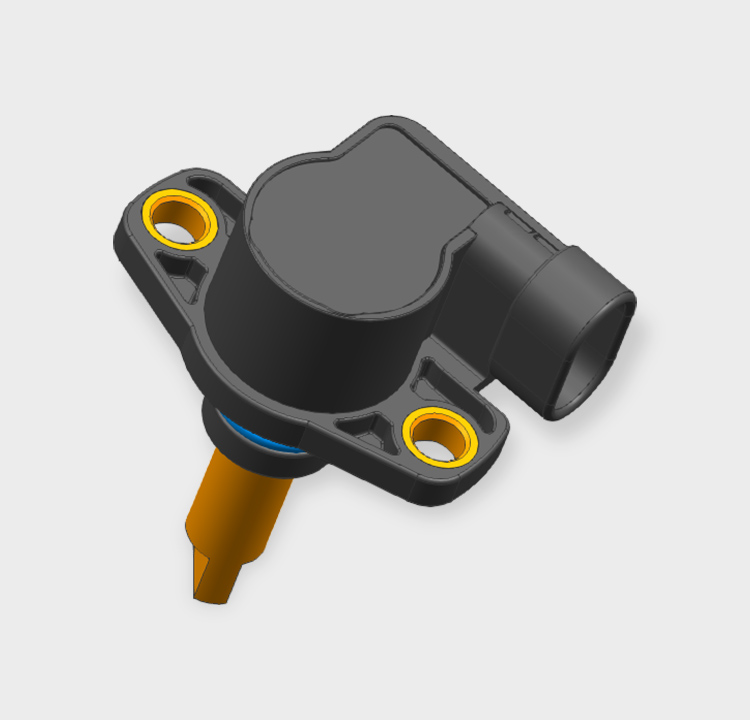

The sensor detects the shaft rotation and outputs the signal which can match the different angle position.
Varied Angular sensing ranges available
Absolute rotary position sensor
Analog Output – PWM custom options
Non-contact measuring
Programmable angular range – custom option
Clockwise & Anticlockwise Versions available
Long life
High speed
Unaffected by harsh environments
Small robust package
pedal position
absolute rotary encoder
Axis position
The sensor is assembled to a shaft with a defined angle position. When the driving shaft is rotating, the magnet inside the sensor is also rotating at same time. The Hall Effect sensor is activating, which would output the voltage as linear.
Customized to customer choice of connection system
Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.
End point:104°+/-1º
Available for customer defined range.
-
