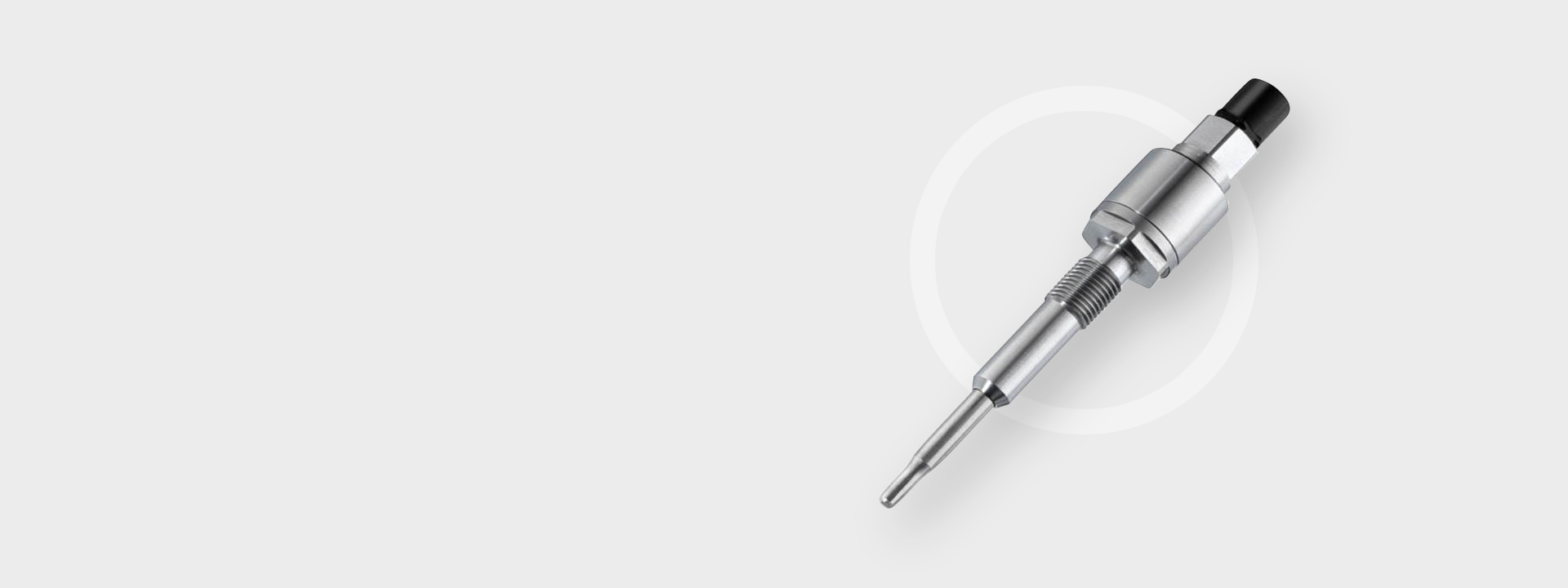

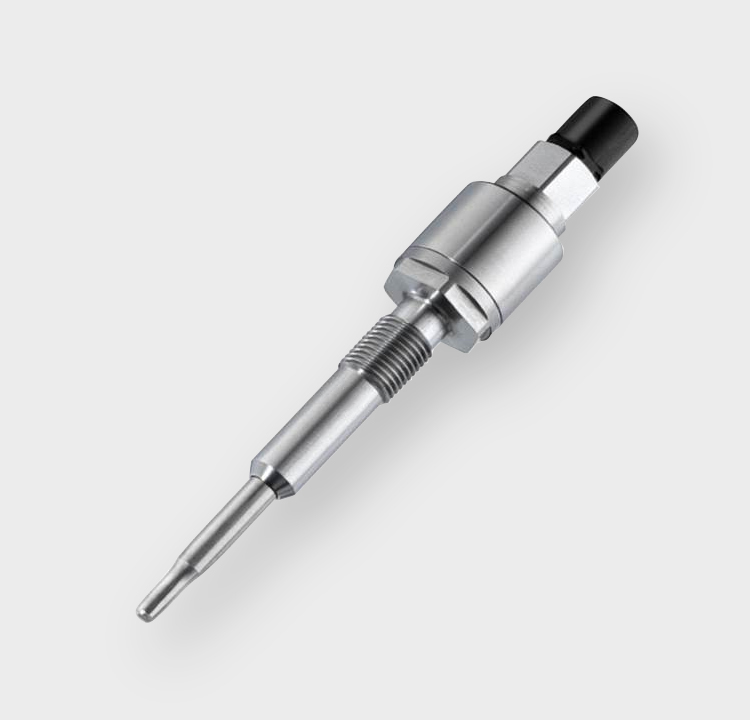

A CPS allows one to get combustion feedback from inside the cylinder, and send the signal to ECU.
Robust and reliable piezoresistive Micro Strain Gauge technology
Pressure can be customized in the range of 0~20MPa.
Excellent compatibility of operation media
Output can be SENT and Analog, with diagnosis function
Temperature Compensation is available
Protection degree with IP69
Connector and pressure port can be customized
A CPS allows one to get combustion feedback from inside the cylinder, to fulfill the regulatory requirements.
With glass micro-melting process, piezoresistive micro strain gauge will be sintered on stainless steel port. When the pressure affected on the stainless port, silicon strain gauge will also be deformed, then its resistance value will change against the deformation. After conditioning, the resistance value will be converted into analog signal or SENT signal as needed.
Customized to customer choice of connection system.
Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.
-
