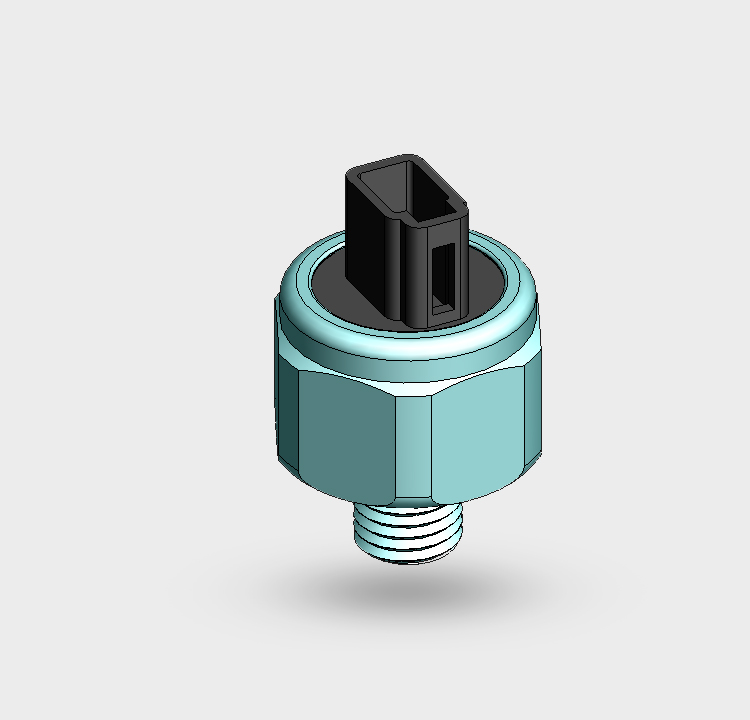

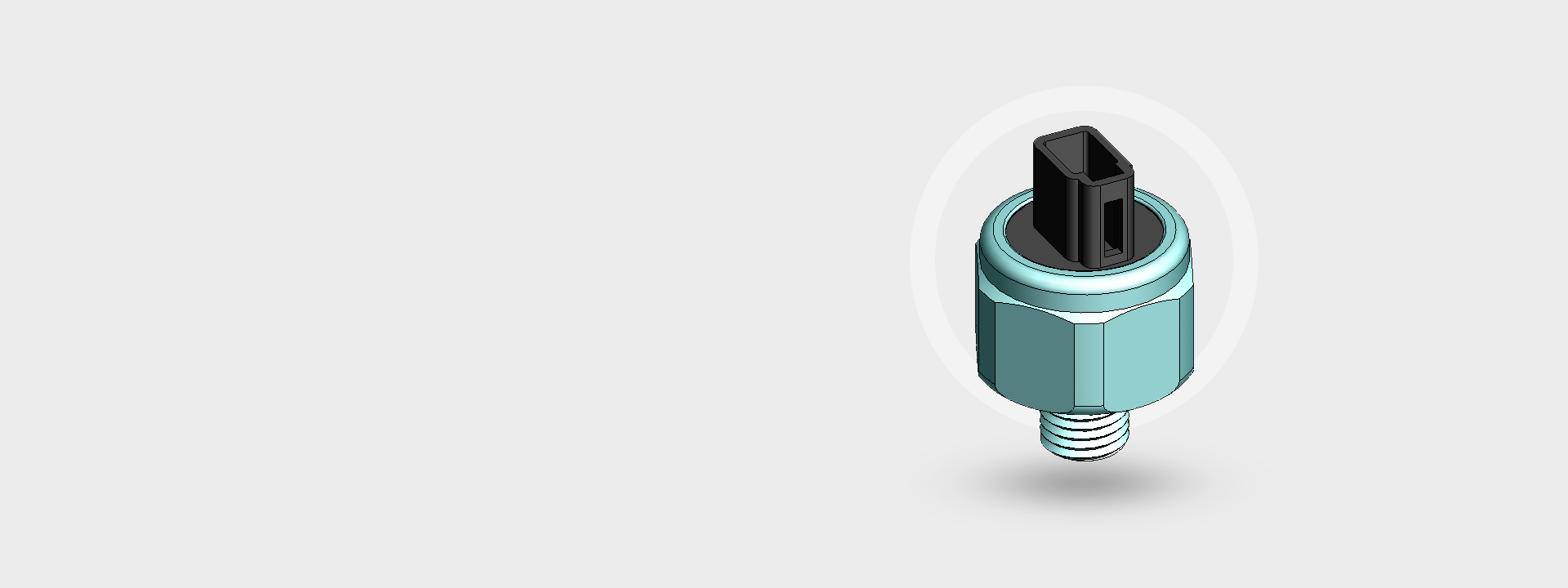

Transmission Pressure Sensor

The sensor detects the pressure of the vehicle transmission.

Feature and benefits

The sensor detects the pressure of the vehicle transmission

With ceramic capacity technology, with both high accuracy and long-term stability. Ceramic has excellent compatibility with almost all automotive pressure media

Pressure can be customized in the range of 0~8MPa

Output with 0.5V~4.5V voltage single, with diagnosis function

Protection degree with IP69

Connector and pressure port can be customized

Application

The transmission pressure sensor detects the pressure of the transmission lines and transmits the signal to the ECU to help control the normal operation of the transmission

Operate
Basic principle

According to the change of the medium pressure in the induction pipe, the air conditioning pressure sensor will lead to the deformation of the ceramic strain film and change the capacitance value, which will be amplified by the conditioning circuit and converted into a voltage signal.

Connection options

Customized to customer choice of connection system

Packaging Options

Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.

Functional Characteristics
PARAMETER
NOTE
MIN.
NOM.
MAX.
UNITS
TEMPERATURE RANGE
T
-40

150
℃
PRESSURE RANGE
P
0

8
MPa
SUPPLY VOLTAGE
Vcc
4.75
5
5.25
V
SUPPLY CURRENT
Icc


10
mA
NOMINAL OUTPUT
Vout
5

95
%Vcc
Proof Pressure



2*P
MPa
Burst Pressure



3*P
MPa
Over Voltage



20
V
Reverse voltage

-20


V
OVERALL ACCURACY ERROR
Err

±3

%Fs
PRESSURE RESPONSE TIME
T 10/9010% TO 90% OF THE FINAL OUTPUT VALUE


10
ms
